Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe
  • Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe

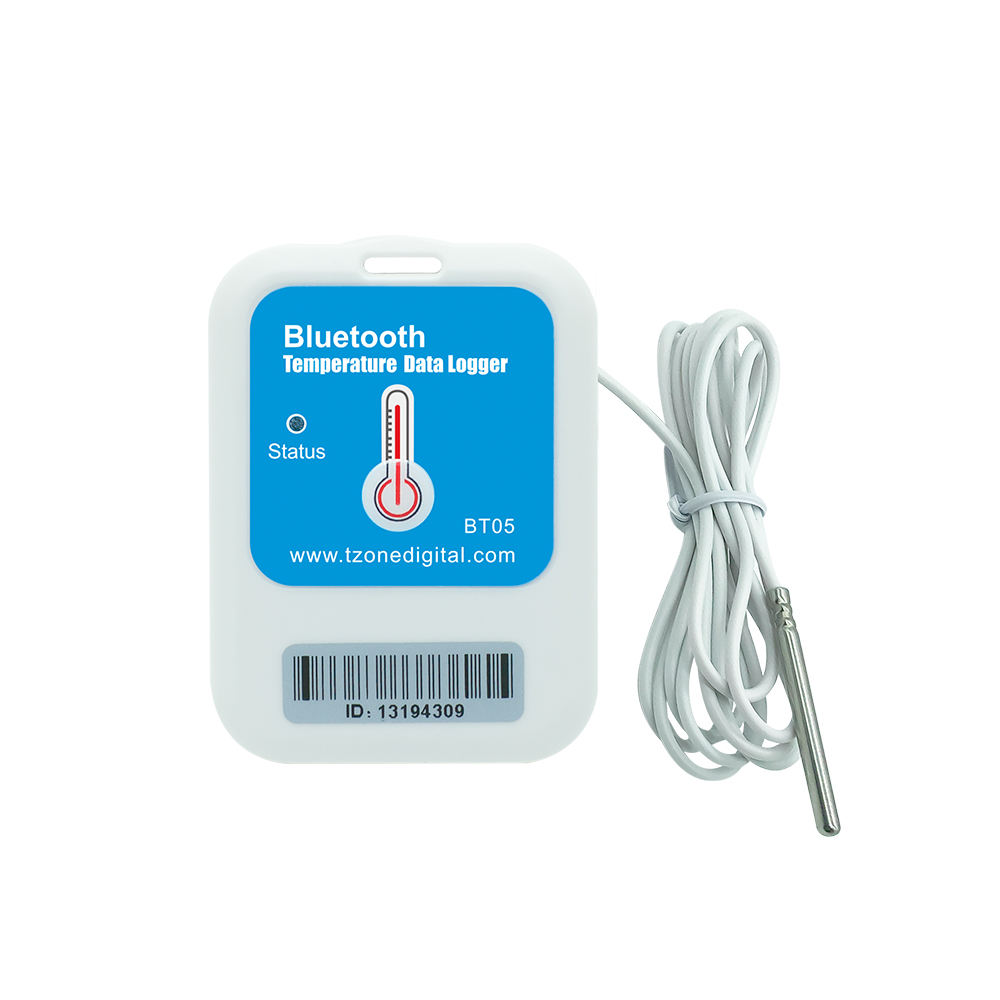

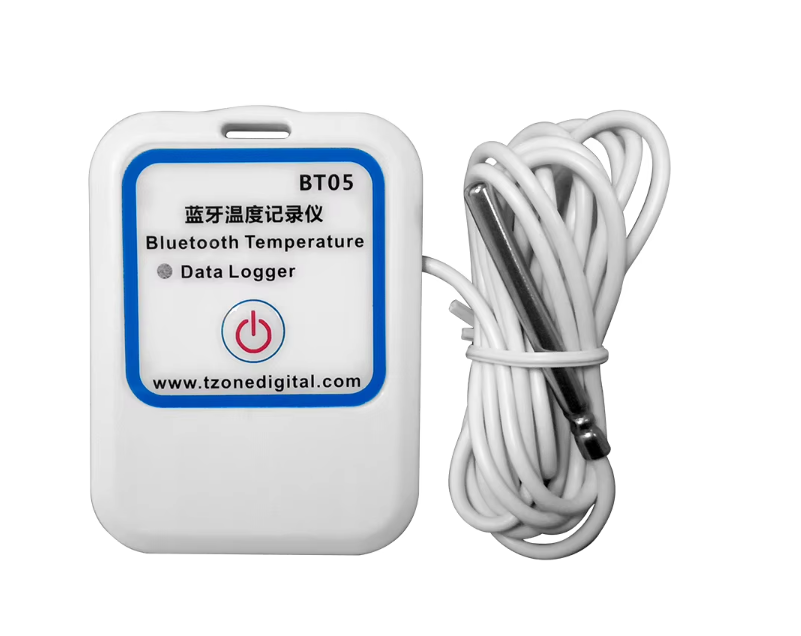

Temp-BT05 Portable Smart Ble Temperature Data Logger with External Probe

Item No.: Temp-BT05
INQUIRY
TZ-BT05B (Bluetooth Temperature data logger with extra sensor) is a low power consumption Bluetooth data logger, using the latest Bluetooth 4.0 technology, Nordic NRF51822 chip development and design.
    It can collect temperature of the surrounding environment and recording and preservation of
historical data, can store up to 12000 pieces temperature data

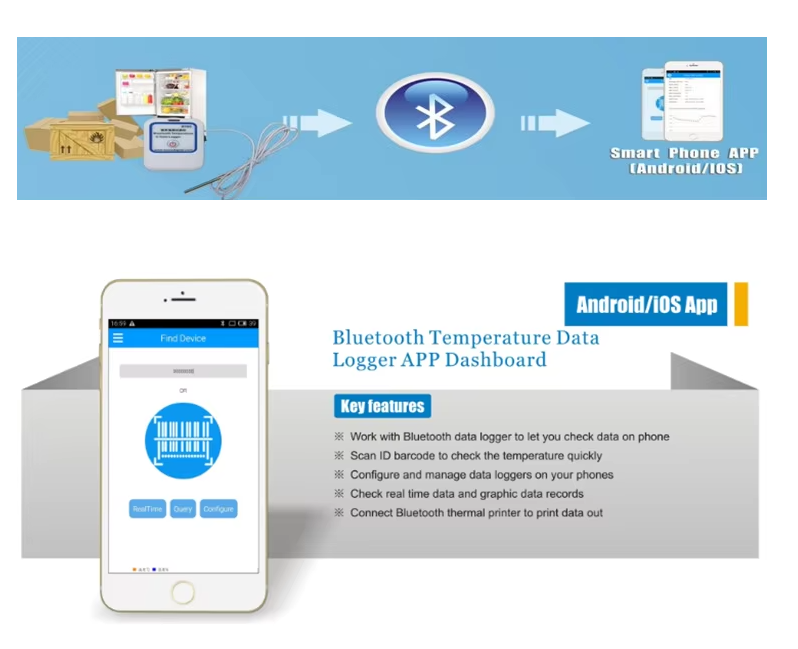

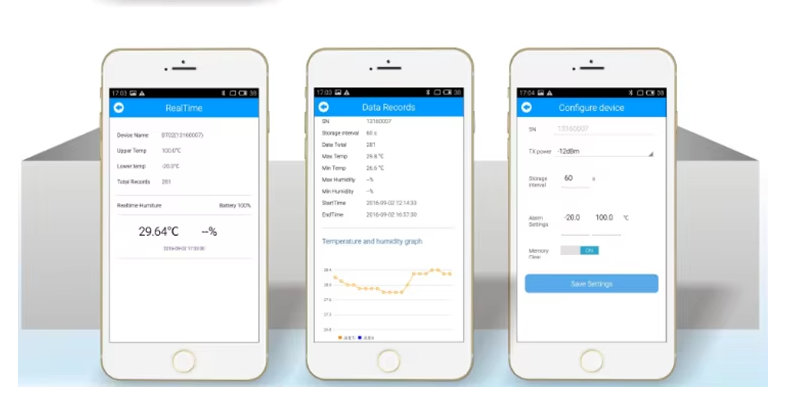

   Bluetooth 4.0 can be downloaded over the phone APP configuration tools,to achieve full stage real-time temperature recording.
   It has the small size, light weight, easy to carry, high accuracy and other characteristics, widely used in various other areas of refrigerated storage and transport, archives, experimental (test) rooms, museums and other temperature testing.



 Features:
* High accuracy and stability
* Bluetooth 4.0
* Long distance wireless transfer
* External highly sensitive temperature sensor
* Real-time display temperature
* It can store 12000 pieces of temperature data
* PDF report can be sent to specified email
* LED light indicates the working status
* Can choose time to query data, every time query of data, the stored data can be saved in history
* Can set normal storage temperature data interval and alarm storage temperature and humidity data interval



Specification:



Dimension 50mm*35mm*15mm
N.W 30g
Signal transmission frequency 2.400 - 2.4835GHz
Protocol standard Bluetooth 4.0
Modulation mode GFSK
Send interval 2S (default)
Built in battery CR2450,550mAh /3V
Output power -4dBm, adjustable
Communication rate 1Mbps
Transmission distance 55 meters, adjustable
Storage Can save 12000 temperature data
Battery life 1.5 year (Depends on the mode of operation)
Operating temperature range -40℃~+80℃ (external sensor)
Temperature detection accuracy ±0.5℃(-20℃~+40℃), ±1℃(Other temperature range)
